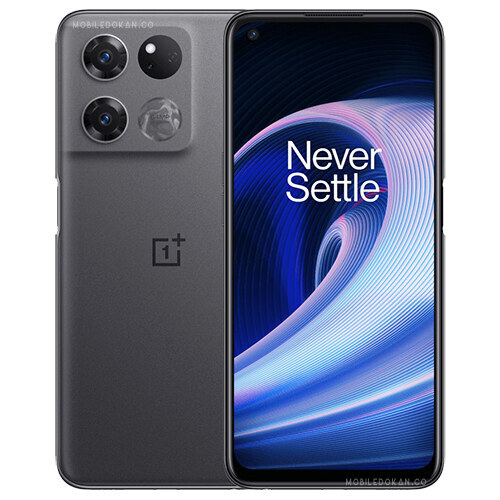

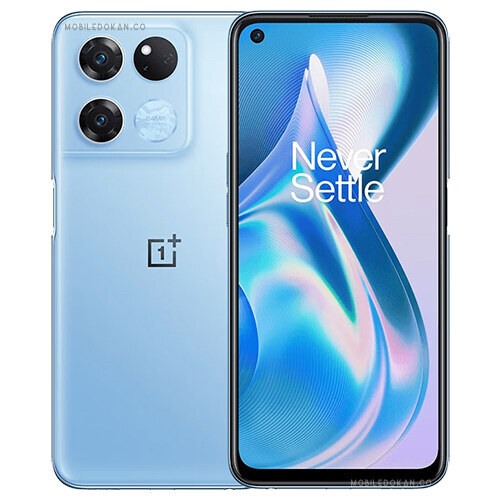

OnePlus Ace Racing Edition
Pro and cons
Pros
- Best build quality and design.
- Powerful battery with fast charging.
- Huge RAM and storage.
Cons
- FM is not supported.
Specification
Network
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| 2G bands |
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| 3G bands |
HSDPA 800 / 850 / 900 / 1700(AWS) / 1800 / 1900 / 2100 |
| 4G bands |
1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 26, 28, 34, 38, 39, 40, 41 - China |
| 5G bands |
1, 3, 40, 41, 78, 79 SA/NSA - China |
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (4CA) Cat18 1200/200 Mbps, 5G |
Body
| Dimensions |
164.3 x 75.8 x 8.7 mm (6.47 x 2.98 x 0.34 in) |
| Weight | 205 g (7.23 oz) |
| Build |
Dual SIM (Nano-SIM, dual stand-by) |
Display
| Type | IPS LCD capacitive touchscreen, 1B colors |
| Size | 6.59 inches, 104.5 cm2 (~83.9% screen-to-body ratio) |
| Resolution | 1080 x 2412 pixels, 20:9 ratio (~401 ppi density) |
| Features |
120Hz, 480 nits (typ), 600 (HBM) |
Platform
| OS | Android 12, ColorOS 12.1 |
| Chipset |
MediaTek Dimensity 8100-Max (5 nm) |
| CPU |
Octa-core (4x2.85 GHz Cortex-A78 & 4x2.0 GHz Cortex-A55) |
| GPU |
Mali-G610 MC6 |
Memory
| Internal Storage |
128/256 GB UFS 3.1 |
| RAM | 8/12 GB |
Camera
| Features |
Dual-LED dual-tone flash, HDR, panorama |
| Video The meaning of VIDEO CAMERA is a camera that records video and usually audio |
64 MP, f/1.7, 25mm (wide), PDAF |
| Selfie camera | 16 MP, f/2.4, 26mm (wide), 1/3.09", 1.0µm |
More
| Alert types | Vibration, MP3, WAV ringtones |
| Loudspeaker | Yes, with stereo speakers |
| 3.5mm jack | yes |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct, hotspot |
| Bluetooth |
5.3, A2DP, LE, aptX HD |
| GPS |
Yes, with A-GPS, GLONASS, GALILEO, BDS, QZSS |
| NFC | yes |
| FM radio Mobile phones that support FM radio have a dedicated FM radio receiver chip. This chip is responsible for receiving FM radio signals and converting them into audio signals that can be played through the phone's speakers or headphones. | 356,685.00 NGN |
| USB | USB Type-C 2.0 |
| Infrared port An infrared (IR) port is a port on an electronic device that sends and receives data using infrared light. IR ports were commonly used in wireless devices to allow for fast communication with other devices, such as base stations. IR ports work by allowing two devices to face each other and share data using infrared rays within a range of 10 meters. | |
| Sensors | Fingerprint (side-mounted), accelerometer, gyro, proximity, compass |
| Messaging |
SMS(threaded view), MMS, Email, Push Email, IM |
| Battery Type |
Non-removable Li-Po |
| Battery Capacity |
5000 mAh |
| Charging |
Fast charging 67W, 80% in 29 min (advertised) |
| Color |
Black, Blue |
Product Details
Highlight of the OnePlus Ace Racing Edition
In May 2022, the OnePlus Ace Racing Edition will go on sale. The model number of the Ace Racing Edition was not disclosed at launch. First off, neither the weight nor the dimensional measure are known. Second, a 6.59-inch IPS LCD screen with a resolution of 1080 x 2412 pixels powers the Ace Racing Edition’s display. The display is shielded from outside influences. Most notably, it runs Android 12 and is powered by the MediaTek Dimensity 8100-Max (5 nm). Additionally, its CPU may reach up to eight cores (4×2.85 GHz Cortex-A78 & 4×2.0 GHz Cortex-A55).
The rear of the OnePlus Ace Racing phone is equipped with four cameras. A 64MP wide, 8MP ultrawide, 2MP macro, and 2MP depth camera make up this configuration. Within the display notch is a 16MP selfie camera. It can capture videos in 1080p@30 frames per second. There are two variations of its RAM and ROM (8/12GB/128/256GB). However, if a dedicated slot is used, it can accommodate up to microSDXC. Without a doubt, the 5000mAh battery with 67W fast charging on the Ace Racing Edition. There are two nano-SIM card slots on it. In other words, the Ace Racing Edition supports 2G, 3G, 4G, and 5G. The fingerprint sensor is positioned on the side.
Conversely, among the other features are face unlock, WLAN, Bluetooth, and a USB port.
