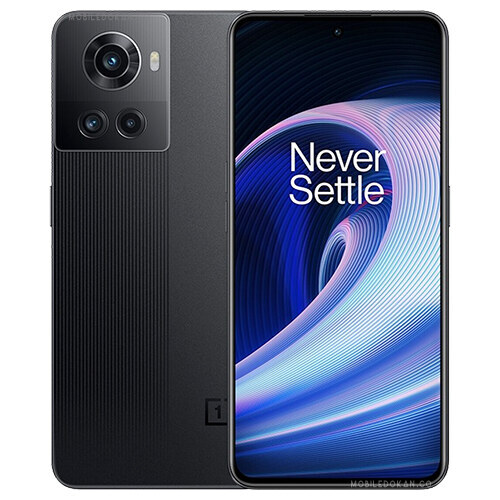

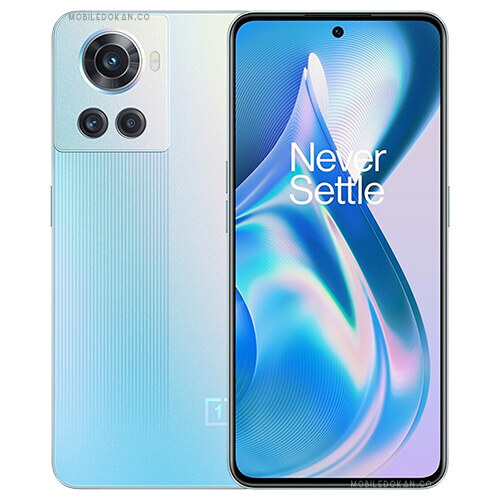

OnePlus Ace
Pro and cons
Pros
- Best build quality and design.
- Powerful battery with fast charging.
- Huge RAM and storage.
Cons
- FM is not supported.
Specification
Network
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| 2G bands |
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| 3G bands |
HSDPA 800 / 850 / 900 / 1700(AWS) / 1800 / 1900 / 2100 |
| 4G bands |
1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 26, 28, 34, 38, 39, 40, 41 - China |
| 5G bands |
1, 3, 40, 41, 78, 79 SA/NSA - China |
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (4CA) Cat18 1200/200 Mbps, 5G |
Body
| Dimensions |
163.3 x 75.5 x 8.2 mm (6.43 x 2.97 x 0.32 in) |
| Weight | 186 g (6.56 oz) |
| Build |
Glass front (Gorilla Glass 5), plastic frame |
| SIM | Dual SIM (Nano-SIM, dual stand-by) |
Display
| Type | OLED capacitive touchscreen, 1B colors |
| Size | 6.7 inches, 108.0 cm2 (~87.6% screen-to-body ratio) |
| Resolution | 1080 x 2412 pixels, 20:9 ratio (~394 ppi density) |
| Protection |
Corning Gorilla Glass 5 |
| Features |
120Hz, HDR10+, 500 nits (typ), 800 nits (HBM), 950 nits (peak) |
Platform
| OS | Android 12, ColorOS 12.1 |
| Chipset |
MediaTek Dimensity 8100 Max |
| CPU |
Octa-core (4x2.85 GHz Cortex-A78 & 4x2.0 GHz Cortex-A55) |
| GPU |
Mali-G610 MC6 |
Memory
| Internal Storage |
128/256/512 GB UFS 3.1 8/12 GB |
| RAM | 8/12 GB |
Camera
| Features |
Dual-LED dual-tone flash, HDR, panorama |
| Video The meaning of VIDEO CAMERA is a camera that records video and usually audio |
50 MP, f/1.9, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS |
| Selfie camera | 16 MP, f/2.4, 26mm (wide), 1/3.09", 1.0µm |
More
| Alert types | Vibration, MP3, WAV ringtones |
| Loudspeaker | Yes, with stereo speakers |
| 3.5mm jack | NO |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct, hotspot |
| Bluetooth |
5.2, A2DP, LE |
| GPS |
Yes, with A-GPS, GLONASS, GALILEO, BDS |
| NFC | YES |
| FM radio Mobile phones that support FM radio have a dedicated FM radio receiver chip. This chip is responsible for receiving FM radio signals and converting them into audio signals that can be played through the phone's speakers or headphones. | 448,149.00 NGN |
| USB | USB Type-C 2.0 |
| Infrared port An infrared (IR) port is a port on an electronic device that sends and receives data using infrared light. IR ports were commonly used in wireless devices to allow for fast communication with other devices, such as base stations. IR ports work by allowing two devices to face each other and share data using infrared rays within a range of 10 meters. | |
| Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass, color spectrum |
| Messaging |
SMS(threaded view), MMS, Email, Push Email, IM |
| Battery Type |
Non-removable Li-Po |
| Battery Capacity |
4500 mAh |
| Charging |
Fast charging 150W, 50% in 5 min |
| Color |
Black, Blue |
| Models | PGKM10 |
Product Details
Highlight of the OnePlus Ace
April 2022 will see the release of the OnePlus Ace. The Ace’s model number at introduction was PGKM10. First off, it weighs 186 g and has dimensions of 163.3 x 75.5 x 8.2 mm. Second, the Ace’s display is a 6.7-inch OLED panel with a resolution of 1080 x 2412. The aluminium frame, glass back, and glass front (Gorilla Glass) all provide protection for the display. Most notably, it runs Android 12 and is powered by a MediaTek Dimensity 8100 Max. Additionally, its CPU can reach up to eight cores (4×2.85 GHz Cortex-A78 & 4×2.0 GHz Cortex-A55).
The rear of the OnePlus Ace phone is equipped with three cameras. A 50MP wide, 8MP ultrawide, and 2MP macro camera make up this configuration. Within the display notch is a 16MP selfie camera. It can record videos in 1080p@30 frames per second. There are three variations of its RAM and ROM (8/12GB/128/256/512GB). However, if a dedicated slot is used, it can accommodate up to microSDXC. Without a doubt, the Ace has a fast-charging 4500mAh battery. There are two nano-SIM card slots on it. In other words, the Ace supports 2G, 3G, 4G, and 5G. The fingerprint sensor is situated beneath the screen.
Conversely, among the other features are face unlock, WLAN, Bluetooth, and a USB port.
